Setting Up Filters

This chapter describes how to configure filters, and consists of the following sections:

Before you begin

Overview of packet filters

Overview of filter configuration tasks

Configuring an IP filter

Configuring a generic filter

Setting up filter changes

Before you begin

Overview of packet filters

Types of packet filters

Generic filters

IP filters

Ways to apply packet filters

Data filters for dropping or forwarding certain packets

When you apply a data filter, its forward or drop action affects the actual data stream by preventing certain packets from reaching the Ethernet from the WAN, or vice versa. Figure 11-1 illustrates the concept.

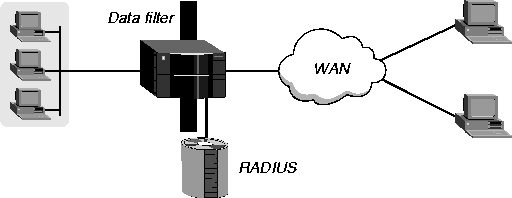

Figure 11-1. Data filters can drop or forward certain packets

Data filters do not affect the idle timer, and a data filter applied to a RADIUS user profile does not affect the answering process.

Call filters for managing connections

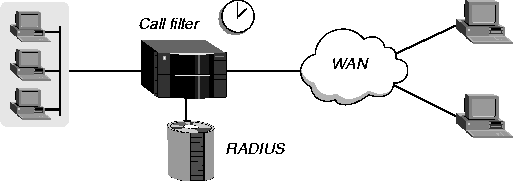

Figure 11-2. Call filters can prevent certain packets from resetting the timer

A call filter prevents unnecessary connections and helps the MAX TNT distinguish active traffic from noise. By default, any traffic to a remote site triggers a call, and any traffic across an active connection resets the connection's idle timer.

When you apply a call filter, its forwarding action does not affect which packets are sent across an active connection. The forwarding action of a call filter determines which packets can initiate a connection or reset a session's timer. When a session's idle timer expires, the MAX TNT terminates the session. The idle timer is set to 120 seconds by default, so if a connection is inactive for two minutes, the MAX TNT terminates the connection.

How packet filters work

A match occurs at the first successful comparison between a filter and the packet being examined. When a comparison succeeds, the filtering process stops and the MAX TNT applies the forward or drop action to the packet.

If no comparisons succeed, the packet does not match the filter, and the MAX TNT does not forward the packet. When no filter is in use, the MAX TNT forwards all packets. However, once you apply a filter to a connection, this default is reversed. For security purposes, the MAX TNT does not automatically forward nonmatching packets. It requires a rule that explicitly allows those packets to pass.

In a generic filter, all settings work together to specify a location in a packet and a number that the MAX TNT compares to the value in that location. In an IP filter, the MAX TNT makes a set of distinct comparisons in a defined order. When a comparison fails, the packet goes on to the next comparison. When a comparison succeeds, the filtering process stops and the MAX TNT applies the forward or drop action to the packet.

The IP filter tests proceed in the following order:

1. Compare the source address specified by the filter to the source address of the packet. If they are not equal, the comparison fails.

2. Compare the destination address specified by the filter to the destination address in the packet. If they are not equal, the comparison fails.

3. If the protocol specified by the filter is zero (which matches any protocol), the comparison succeeds. If it is nonzero and not equal to the protocol field in the packet, the comparison fails.

4. If the source port of the packet does not match the source port specified by the filter, the comparison fails.

5. If the destination port of the packet does not match the destination port specified by the filter, the comparison fails.

6. If the filter specifies a match only if a TCP session is already established, and a TCP session is up, the comparison succeeds.

Overview of filter configuration tasks

• Set up an IP filter, as described in Configuring an IP filter.

• Set up a generic filter, as described in Configuring a generic filter.

• Set up a client to request filter changes, as described in Setting up filter changes.

Configuring an IP filter

Ascend-Data-Filter="ip dir action [dstip dest_ipaddr\subnet_mask]
[srcip src_ipaddr\subnet_mask] [proto [dstport cmp value]

[srcport cmp value] [est]]"

Use the following format for an IP call-filter entry:

Ascend-Call-Filter="ip dir action [dstip dest_ipaddr\subnet_mask]
[srcip src_ipaddr\subnet_mask] [proto [dstport cmp value]

[srcport cmp value] [est]]"

Table 11-1. IP filter syntax elements

Keyword or argument	Description
ip	Specifies an IP filter.
dir	Specifies filter direction. You can specify in (to filter packets coming into the MAX TNT) or out (to filter packets going out of the MAX TNT).
action	Specifies the action the MAX TNT should take with a packet that matches the filter. You can specify either forward or drop.
dstip dest_ipaddr \subnet_mask	The keyword dstip enables destination-IP-address filtering. The filter applies to packets whose destination address matches the value of dest_ipaddr. If a subnet mask portion of the address is present, the MAX TNT compares only the masked bits. If you set dest_ipaddr to 0.0.0.0, or if this keyword and its IP address specification are not present, the filter matches all IP packets.
srcip src_ipaddr \subnet_mask	The keyword srcip enables source-IP-address filtering. The filter applies to packets whose source address matches the value of src_ipaddr. If a subnet mask portion of the address is present, the MAX TNT compares only the masked bits. If you set src_ipaddr to 0.0.0.0, or if this keyword and its specification are not present, the filter matches all IP packets.
proto	Specifies a protocol specified as a name or a number. The filter applies to packets whose protocol field matches this value.The supported names and numbers are icmp (1), tcp (6), udp (17), and ospf (89). If you set proto to 0 (zero), the filter matches any protocol.
dstport cmp value	The keyword dstport enables destination-port filtering. This argument is valid only when the protocol is tcp (6) or udp (17). If you do not specify a destination port, the filter matches any port. The cmp argument defines how to compare the specified value to the actual destination port. It can have the value <, =, >, or !=. value can be a number or a name. Supported names and numbers are ftp-data (20), ftp (21), telnet (23), smtp (25), nameserver (42), domain (53), tftp (69), gopher (70), finger (79), www (80), kerberos (88), hostname (101), nntp (119), ntp (123), exec (512), login (513), cmd (514), and talk (517).
srcport cmp value	The keyword srcport enables source-port filtering. It is valid only when the protocol is tcp (6) or udp (17). If you do not specify a source port, the filter matches any port. The cmp argument defines how to compare the specified value to the actual source port. It can have the value <, =, >, or !=. value can be a number or a name. Supported names and numbers are ftp-data (20), ftp (21), telnet (23), smtp (25), nameserver (42), domain (53), tftp (69), gopher (70), finger (79), www (80), kerberos (88), hostname (101), nntp (119), ntp (123), exec (512), login (513), cmd (514), and talk (517).
est	If you set this argument to 1, the filter matches a packet only if a TCP session is already established. It is valid only when the proto specification is tcp (6).

Example of configuring data filters for preventing IP address spoofing

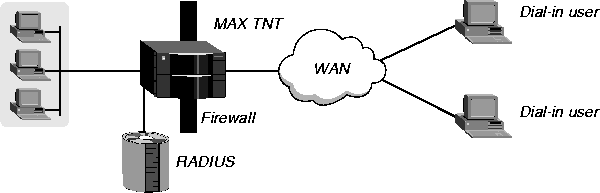

Figure 11-3. Data filters for preventing IP address spoofing

The following example show you how to define data filters to prevent break-ins that use address spoofing. In each RADIUS user profile for a dial-in user across the WAN, enter the data filters in the order specified below. Proceed as follows:

1. Define a data filter that drops incoming packets whose source address is on the local IP network (200.100.50.128):

   Ascend-Data-Filter="ip in drop srcip 200.100.50.128"


   Because action is set to drop, if an incoming packet has the local address, the MAX TNT does not forward it.

2. Define a data filter that drops packets whose source address is the loopback address (127.0.0.0):

   Ascend-Data-Filter="ip in drop srcip 127.0.0.0"


3. Define a data filter that specifies every other source address (0.0.0.0) and indicates that the MAX TNT should forward all other packets:

   Ascend-Data-Filter="ip in forward"


4. Define a data filter that specifies that the MAX TNT should forward packets originating on the local network:

   Ascend-Data-Filter="ip out forward srcip 200.100.50.128"

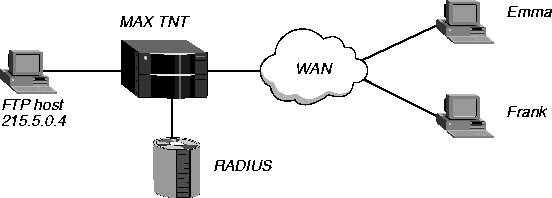

Figure 11-4. Data filters to allow FTP to a specific host

In Emma's RADIUS user profile, you must specify several IP data filters in the proper order. Proceed as follows:

1. Forward incoming packets only to destination ports 20 and 21 at IP address 215.5.0.4. Ports 20 and 21 are FTP ports. Enter the following filter specifications:

   Ascend-Data-Filter="ip in forward tcp dstip 215.5.0.4 dstport=20"


   Ascend-Data-Filter="ip in forward tcp dstip 215.5.0.4 dstport=21"


2. Forward outgoing packets to IP address 215.5.0.4 only when the destination port is greater than 1023. (FTP responses come back on a random port greater than 1023.) Enter the following filter specification:

   Ascend-Data-Filter="ip out forward tcp dstip 215.5.0.4 dstport >1023"


3. Drop all other incoming IP packets:

   Ascend-Data-Filter="ip in drop"


4. Drop all other outgoing IP packets:

   Ascend-Data-Filter="ip out drop"

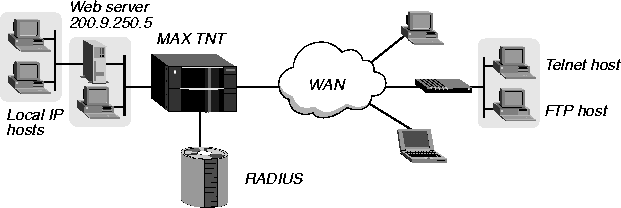

Figure 11-5. Using filters for complex security purposes

The administrator needs to carry out the following tasks:

• Provide dial-in access to the server's IP address

• Restrict dial-in traffic to all other hosts on the local network

In each RADIUS user profile, you must create several IP data filters in the specified order. Proceed as follows:

1. Enable packets to reach the Web server's destination address at a TCP port used for Telnet or FTP. Enter the following specification:

   Ascend-Data-Filter="ip in forward dstip 200.9.250.5 tcp dstport=80"


2. To allow incoming TCP packets responding to a local user's outgoing Telnet request, you can forward TCP packets whose destination port is greater than the source port. (Telnet requests go out on port 23, and responses come back on a random port greater than 1023.) Enter the following specification:

   Ascend-Data-Filter="ip in forward tcp dstport > 1023"


3. To allow incoming RIP updates, you can forward incoming UDP packets if the destination port is greater than the source port. Enter the following specification:

   Ascend-Data-Filter="ip in forward dstip udp dstport > 1023"


4. To allow unrestricted Pings and Traceroutes, enter the following specification:

   Ascend-Data-Filter="ip in forward"


Configuring a generic filter

Ascend-Data-Filter="generic dir action offset mask value compare
[more]"

Use the following format for a generic call filter entry:

Ascend-Call-Filter="generic dir action offset mask value compare
[more]"

Table 11-2. Generic filter syntax elements

Keyword or argument	Description
generic	Specifies a generic filter.
dir	Defines filter direction. You can specify in (to filter packets coming into the MAX TNT) or out (to filter packets going out of the MAX TNT).
action	Defines the action the MAX TNT should take with a packet that matches the filter. You can specify either forward or drop.
offset	Specifies the number of bytes masked from the start of the packet. The byte position specified by offset is called the byte-offset. Starting at the position specified by offset, the MAX TNT applies the value of the mask argument. A mask hides the part of a number that appears behind the binary zeroes in the mask. The unit then compares the unmasked portion of the packet with the value specified by the value argument.
mask	Specifies which bits to compare in a segment of the packet. The mask must not exceed 6 bytes (12 hexadecimal digits). A one bit in the mask indicates a bit to compare. A zero bit indicates a bit to ignore. The length of the mask specifies the length of the comparison.
value	Specifies the value to compare to the packet contents at the specified offset in the packet. The length of the value must be the same as the length of the mask. Otherwise, the MAX TNT ignores the filter.
compare	Defines how the MAX TNT compares a packet's contents to the value specified by value. You can specify == (for Equal) or != (for NotEqual). Equal is the default.
more	If present, specifies whether the MAX TNT applies the next filter definition in the profile to the current packet before deciding whether to forward or drop the packet. The dir and action values for the next entry must be the same as the dir and action values for the current entry. Otherwise, the MAX TNT ignores the more flag.

Understanding generic filters

Ascend-Data-Filter="generic in drop 2
ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff:ff
aa:aa:03:00:00:00:80:f3:00:00:00:00"

Specifying an offset to the bytes in a packet to be examined

2A 31 97 FE 45 70 12 22 33 99 B4 80 75

Linking the filter to the next one in sequence

Masking the value before comparison

After the mask and value are both translated into binary format, the MAX TNT applies the mask to the specified value with a logical AND. The mask hides the bits that appear behind each binary 0 (zero) in the mask. A mask of all ones (FF:FF:FF:FF:FF:FF:FF:FF) masks no bits, so the full specified value must match the packet contents. For example, suppose you specify the following values:

offset=2

mask=0f:ff:ff:ff:00:00:00:f0:00:00:00:00

value=07:fe:45:70:00:00:00:90:00:00:00:00

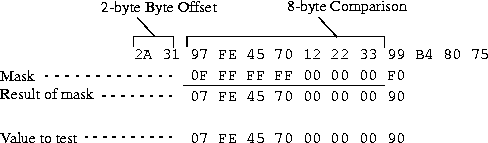

2A 31 97 FE 45 70 12 22 33 99 B4 80 75

The MAX TNT applies the mask as shown below, resulting in a value that matches the setting for the value argument.

The packet matches the filter. Because the action argument is set to drop, the MAX TNT drops the packet. The byte comparison works as follows:

• The MAX TNT ignores 2A and 31 because of the two-byte offset.

• The MAX TNT ignores the 9 in the lower half of the third byte, because the mask has a 0 (zero) in its place. The 7 in the third byte matches the value argument's 7 in the upper half of that byte.

• F and E in the fourth byte match the value specified by the filter for that byte.

• 4 and 5 in the fifth byte match the value specified by the filter for that byte.

• 7 and 0 in the sixth byte match the value specified by the filter for that byte.

• The MAX TNT ignores 12, 22, and 33 in the seventh, eighth and ninth bytes, respectively, because the mask has a 0 (zero) in those places.

• 9 in the tenth byte matches the value argument's 9 in the lower half of the byte. The MAX TNT ignores the second 9 in the upper half of the packet's tenth byte because the mask has a 0 (zero) in its place.

Example of using a generic call filter to prevent idle timer resets

Ascend-Call-Filter="generic in drop"

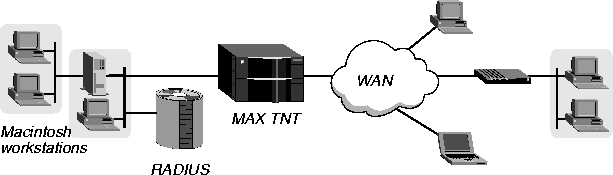

Figure 11-6. Using a generic call filter for AppleTalk traffic

To ensure that AppleTalk packets with destinations on the local LAN do not bring up a connection, you must specify several generic call filters. Configure a separate filter to carry out each of the following tasks. You must create the filters in the specified order. Proceed as follows:

1. Drop AppleTalk Address Resolution Protocol (AARP) packets. Enter the following filter specification to keep AARP packets (protocol ID 80f3) from bringing up a connection:

   Ascend-Call-Filter="generic out drop 14 ffffffffffffffff aaaa0300000080f3"


2. Forward non-AppleTalk traffic. AppleTalk has the protocol 809b. Enter the following filter specification to forward all non-AppleTalk packets:

   Ascend-Call-Filter="generic out forward 14 ffffffffffffffff aaaa03080007809b !="


   From this point on, any additional filters deal only with AppleTalk traffic.

3. Drop AppleTalk Echo Protocol (AEP) packets. Enter the following filter specification to keep AEP packets from bringing up a connection:

   Ascend-Call-Filter="generic out drop 32 ffffff0000000000 0404040000000000 !="


4. Forward all traffic not destined for an AppleTalk multicast address. (AppleTalk uses a multicast address, rather than a broadcast address.) Enter the following filter specification to forward all packets not destined for that multicast address:

   Ascend-Call-Filter="generic out forward 32 ffffffffffff0000 090007ffffff0000 !="


5. Forward Name Binding Protocol (NBP) lookup packets, but only those that the Chooser makes use of (that is, only those with a wildcard entity name). Enter the following filter specification to forward NBP packets:

   Ascend-Call-Filter="generic out forward 32 ff00fff000000000 0200022000000000 more"


   The more value indicates that the MAX TNT must examine the next specification before making the decision to forward a packet. Enter the next specification to direct the MAX TNT to forward only those packets with a wildcard entity name:

   Ascend-Call-Filter="generic out forward 42 ffff000000000000 013d000000000000"


Setting up filter changes

Overview of filter-change attributes

Table 11-3. Filter-change attributes

Attribute	Description	Possible values
Acct-Session-Id (44)	Identifies a routing or terminal-server session.	ASCII string representing a number from 1 to 2,147,483,647. Each number represents a separate session. The number 1 represents the first session. The MAX TNT ignores numbers outside the valid range.
Ascend-Data-Filter (242)	Specifies the data filter to use.	See page 11-4 and page 11-9.
Ascend-Call-Filter (243)	Specifies the call filter to use.	See page 11-4 and page 11-9.
Ascend-Session-Svr-Key (151)	Enables the MAX TNT to match a user session with a client request.	Text string of up to 16 characters. The default value is null.
Framed-Address (8)	Specifies the IP address of the user. The MAX TNT changes filters for all routing sessions associated with the specified address. If you specify User-Name as well, the MAX TNT changes filters only for routing sessions associated with both attributes.	IP address in dotted decimal notation n.n.n.n, where n is a number from 0 to 255. The MAX TNT ignores the default address of 0.0.0.0.
User-Name (1)	Specifies the user's name. The MAX TNT changes filters for all routing sessions associated with the user name. If you specify Framed-Address as well, the MAX TNT changes filters for only routing sessions associated with both attributes.	Text string of up to 252 characters. The default value is null. The string need not be null terminated.

Configuring attributes for filter-change requests

To set up a RADIUS user profile that requests a filter change, you must carry out the following steps:

1. Specify the values for the User-Name and Password attributes. These attributes must identify a user at the IP address indicated by the Auth-Client or Auth-Netmask parameters in the External-Auth profile's Rad-Auth-Server subprofile.

2. Set the Ascend-Data-Filter attribute to specify the data filter to use. You can specify this attribute more than once.

3. Set the Ascend-Call-Filter attribute to specify the call filter to use. You can specify this attribute more than once.

1. To identify the session by IP address, set the Framed-Address attribute.

2. To identify the session by its ID number, set the Acct-Session-Id attribute. The number you specify must match the session reference number used in SNMP accounting or RADIUS accounting.

3. To identify the session by a session key, set the Ascend-Session-Svr-Key attribute.

• The packet is badly formatted.

• The client is not on the list of clients allowed to send RADIUS requests to the server.

• The authenticator field is incorrect.

• The packet contains invalid attribute values.
