Getting Acquainted with RADIUS

This chapter introduces RADIUS authentication and accounting, and provides an overview of the files that the RADIUS server uses. The chapter consists of the following sections:

What is RADIUS?

What types of applications does RADIUS support?

What files does RADIUS use?

Overview of RADIUS packet formats

Using the RADIUS interface

What is RADIUS?

• Authentication attributes

• Configuration data for establishing a WAN connection with an incoming call

• Routing information

• Dialout information

• Filters

• Accounting information

How does RADIUS authentication work?

When you use RADIUS authentication, the following events take place:

1. A user dialing in from a modem, ISDN terminal adapter, or router attempts to open a connection to the MAX TNT.

2. The MAX TNT determines that it must use a RADIUS user profile to authenticate the user.

3. The MAX TNT sends the user connection request to the RADIUS server.

4. If you specify Calling-Line ID (CLID) authentication, the RADIUS server checks the calling party's phone number. The RADIUS server can also perform called-number authentication by checking the number the user dialed to reach the MAX TNT.

5. If required, RADIUS obtains the user's name and password with Password Authentication Protocol (PAP), Challenge Handshake Authentication Protocol (CHAP), or Microsoft CHAP (MS-CHAP) authentication.

6. If the user specified a UNIX user name and password, RADIUS performs a UNIX login.

7. If you have configured token-card authentication, RADIUS forwards the connection request to an external authentication server, such as a Security Dynamics ACE/Server or Enigma Logic SafeWord server.

8. The RADIUS server sends an authentication response to the MAX TNT. If authentication is unsuccessful, the connection is refused. If authentication is successful, the MAX TNT receives a list of attributes from the user profile in the RADIUS server's database and establishes network access for the caller.

9. The MAX TNT notifies the RADIUS server that the session has begun. The MAX TNT also notifies the RADIUS server when the session ends. If you have accounting enabled, the RADIUS server can generate accounting records.

• Start session. Denotes the beginning of a session with the MAX TNT. Information about this event appears in an accounting Start record.

• Stop session. Denotes the end of a session with the MAX TNT. Information about this event appears in an accounting Stop record.

• Failure-to-start session. Denotes that a login attempt has failed. Information about this event appears in an accounting Failure-to-start record.

You can use RADIUS accounting to:

• Gather billing information, including who called, how long the session lasted, and how much traffic occurred during the session.

• Troubleshoot RADIUS and MAX TNT operations. Accounting records can contain information about how many login failures occurred, and can describe the characteristics of the failed attempts.

What types of applications does RADIUS support?

Simple RADIUS authentication and accounting

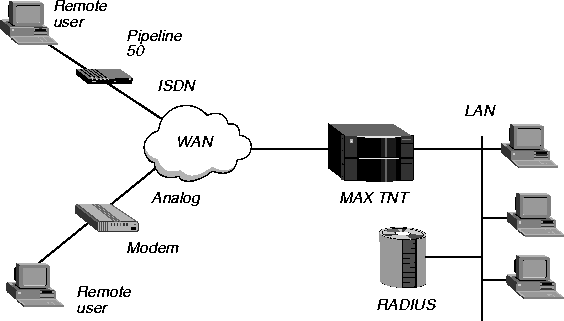

Figure 1-1. RADIUS authentication and accounting

This configuration is ideal for cost-conscious service providers and corporations that do not want to invest in different machines for security and backup.

RADIUS authentication and accounting with a backup server

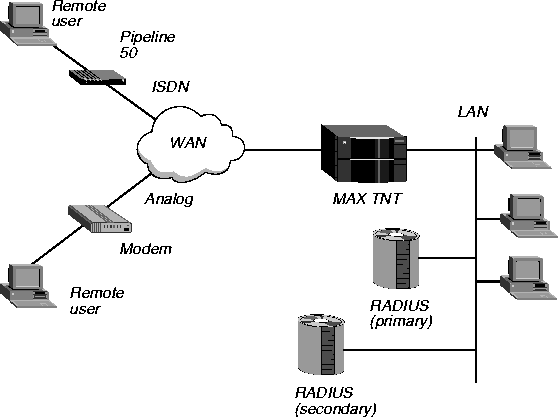

Figure 1-2. RADIUS authentication and accounting with a backup server

RADIUS with an external token-card server

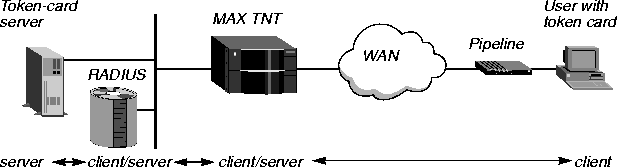

Figure 1-3. RADIUS with an external token-card server

For complete information about configuring RADIUS to work with token-card authentication servers, see Setting up token-card authentication.

Using RADIUS to sign up new customers

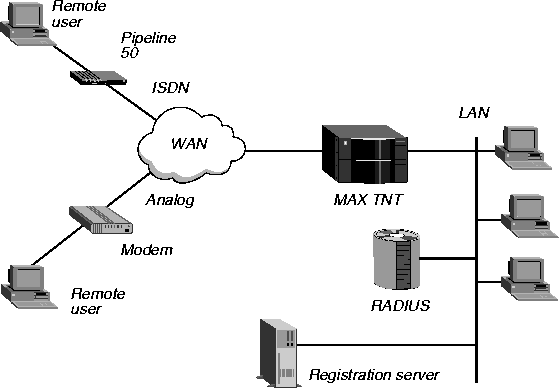

Figure 1-4. Using RADIUS to sign up new customers

A user cannot access any other resource on the system before providing all the registration details and signing up for the service. After a user completes the registration procedure, the server issues a permanent user name and password.

What files does RADIUS use?

Table 1-1. RADIUS files

File name	Default location	Description
radiusd	/etc/raddb	RADIUS daemon for a flat ASCII users file. You must use the Ascend RADIUS daemon, version 1.16 (dated 7/25/95) or later if you require RADIUS accounting or any of the Ascend extensions to the RADIUS daemon defined by IETF RFC 2058. For information about running the radiusd daemon, see Running the daemon with a flat ASCII users file.
radiusd.dbm	/etc/raddb	RADIUS daemon for a UNIX DBM database. You must use the Ascend RADIUS daemon, version 1.16 (dated 7/25/95) or later if you require RADIUS accounting or any of the Ascend extensions to the RADIUS daemon defined by IETF RFC 2058. For information about running the radiusd.dbm daemon, see Running the daemon with a UNIX DBM database.
dictionary	/etc/raddb	Ascend RADIUS dictionary. This file contains a list of all the attributes the daemon supports, along with the possible values for each attribute. You must install the dictionary on your RADIUS server in the same directory as the Ascend RADIUS daemon, and it must have the same date as the Ascend RADIUS daemon. The RADIUS daemon reads the dictionary when it starts up. If you update the dictionary file while the daemon is running, you must stop the daemon process and restart it to make the new attributes available. For further information about the dictionary file, see The dictionary file.
clients	/etc/raddb	File that identifies each client that can send requests to the RADIUS server. For overview information about the clients file, see The clients file. For details about setting up the clients file, see Creating and configuring the clients file.
users	/etc/raddb	File that contains a set of user profiles. Each user profile consists of attributes describing the user's name, his or her password, and the MAX TNT features to which the user has access. For introductory information about the users file, see The users file. For details about setting up the users file, see Chapter 3, Setting Up RADIUS Authentication and all succeeding chapters in this guide.
logfile	/etc/raddb	File containing error messages. You must create this file yourself.
detail	/usr/adm/NAS-name/radacct	File containing accounting records.

The dictionary file

Table 1-2. Format of the dictionary file

Attribute element	Description
Name	ASCII string denoting the attribute, such as User-Name or Password.
ID	Number from 1 to 255 associated with each attribute. For example, the User-Name attribute is attribute 1 and the Password attribute is attribute 2.
Value type	Specification denoting the type of values the attribute can contain: string-a character sequence, not necessarily null terminated (0-253 bytes). abinary-an Ascend binary filter (0-253 bytes). ipaddr-an IP address in network-byte order (4 bytes). integer-a 32-bit value in big-endian order (4 bytes). date-the number of seconds that have elapsed since 00:00:00 GMT, January 1, 1970 (4 bytes).

The first several lines of a typical dictionary file might look like the following:

ATTRIBUTE      User-Name           1             string

ATTRIBUTE      Password            2             string

ATTRIBUTE      Challenge-Response  3             string

ATTRIBUTE      NAS-Identifier      4             string

ATTRIBUTE      NAS-Port            5             string

Ascend3      bXSAMpy

• A user profile is an entry for a user that RADIUS will authenticate. It consists of attributes describing a user and the services he or she can access.

• A pseudo-user profile is an entry containing information that the MAX TNT can query. It does not exist for the purpose of authenticating a user. Rather, it enables you to specify static route configurations, Frame Relay profile information, and other types of data.

Overview of RADIUS packet formats

Table 1-3. RADIUS packet fields

Element	Description
Code (8 bits)	Specifies the packet type. For a list of packet types, see Table 1-4.
Identifier (8 bits)	Enables RADIUS to match requests with responses. Each new request has a unique identifier. Each response carries the identifier of the corresponding request.
Length (16 bits)	Indicates the total packet size in bytes.
Authenticator (16 bytes)	Authenticates packets between the NAS and the authentication server. The NAS and the authentication server share a secret that the system uses, along with the authenticator field, to provide password encryption and packet authentication. The shared secret resides in the clients file on the authentication host. The MAX TNT checks all authentication and accounting packets to ensure that they come from known sources. The check makes use of the shared secret, the authenticator field, and MD5 encoding. In addition, all passwords that the MAX TNT sends are encrypted with MD5, CHAP, or DES. Passwords that the authentication server sends can be encrypted with MD5.
Attribute list (variable length)	Consists of zero or more attributes. Each attribute consists of the following fields: Attribute ID (8 bits)-These IDs are in the dictionary file. Attribute length (8 bits)-This field shows the combined length of the ID, length, and value fields. Attribute value (variable length)-The length and format of this value depend on the attribute type.

Table 1-4 lists the packet types that can appear in the code field.

Table 1-4. Code field packet types

Number	Name	Description
1	Access-Request	Access request that the MAX TNT sends to the RADIUS server on behalf of a client attempting to establish a connection.
2	Access-Accept	Packet sent by the RADIUS server to inform the MAX TNT that a client's request for access has been granted.
3	Access-Reject	Packet the RADIUS server sends to inform the MAX TNT that it has not granted a client's request for access. The RADIUS server sends this packet if the user: Enters an unknown user name Fails to enter the correct password Enters an expired password
4	Accounting-Request	Request for accounting information that the MAX TNT sends to the RADIUS accounting server.
5	Accounting-Response	Packet containing accounting information that the RADIUS accounting server sends to the MAX TNT.
7	Access-Password-Request	Password-change request that the MAX TNT sends to the RADIUS server.
8	Access-Password-Ack	Response from the RADIUS server informing the MAX TNT that the new password has been accepted.
9	Access-Password-Reject	Response from the RADIUS server informing the MAX TNT that the new password has been rejected.
11	Access-Challenge	Request for the user to enter a password with a hand-held token card. The authentication server sends this packet through the RADIUS server and the NAS to the user.
29	Ascend-Access-Next-Code	Response from the RADIUS server informing the MAX TNT that it should request access again, but with the next password in the sequence.
30	Ascend-Access-New-Pin	Response from the RADIUS server informing the MAX TNT that it should request access again, but with the next PIN in the sequence.
32	Ascend-Password-Expired	Response from the RADIUS server to the MAX TNT indicating that the password the user entered matches the one in the user profile, but has expired. (That is, the Access-Request packet sent a valid but expired password.) When a user specifies an expired password, RADIUS prompts the user for a new password. When the user enters the new password, the MAX TNT sends an Access-Password-Request packet that contains both the old password (as the value of the Change-Password attribute), and the new password (as the value of the Password attribute).
33	Ascend-Access-Event-Request	Packet containing a notification that the MAX TNT has started up, or a request for the RADIUS server to record the number of open sessions.
34	Ascend-Access-Event-Response	Response from the RADIUS server reporting that the MAX TNT has started up or specifying the number of sessions, and informing the MAX TNT that the server has received and recorded the MAX TNT unit's ID.
40	Disconnect-Request	Message from a client of the MAX TNT asking it to disconnect the session.
41	Disconnect-Request-ACK	Message the MAX TNT sends to the client if it found at least one session to disconnect.
42	Disconnect-Request-NAK	Message the MAX TNT sends to the client if it could not find a session to disconnect.
43	Change-Filter-Request	Request to change the filters for a routing session.
44	Change-Filter-Request-ACK	Message the MAX TNT sends if it found at least one routing session for which filters could be changed.
45	Change-Filter-Request-NAK	Message the MAX TNT sends if it could not find a routing session for which filters could be changed.

Using the RADIUS interface

Table 1-5. Elements of the users file

Element	Description
Comment line	Begins with the # character at column one, followed by text that extends to the end of the line.
Pseudo-user profile	Consists of the same elements as the user profile, except that the attributes specify information that the MAX TNT can query, rather than authentication information.
User profile	Consists of a first line (also called an authentication line), followed by the rest of the profile, including a final line. The first line consists of a user name, followed by a space or tab, followed by an attribute list containing authentication information, such as the user's password and the password's expiration date. The attributes on the first line are called check attributes, because RADIUS must check the attributes before it can grant access to the MAX TNT. Columns one and two may contain any characters except the # character, a space, or a tab. Starting at the third column, the first line may contain one or more spaces or tabs, followed by an attribute list (without a trailing comma) and a newline. Each subsequent line in the rest of the record has a space or tab in the first column, followed by zero or more spaces or tabs, an attribute list, a comma, and a newline. The final line is identical to each line after the first one, except that it contains no trailing comma.
Blank line	A blank line must not appear within a profile, but may be present anywhere outside a profile. It must end with a newline.

When setting an attribute in a profile, you specify the name of the attribute, followed by an equal sign (=), followed by the attribute's setting. For attributes with predefined settings, you can spell out the full setting, or specify a numeric equivalent. For instance, you can set the User-Service attribute to Login-User (1) in either of the following ways:

User-Service=Login-User

User-Service=1

# This user profile is for PPP sessions only, and uses a

# local password.



Ascend1 Password="Pipeline"

     User-Service=Framed-User,

     Framed-Protocol=PPP,

     Framed-Address=10.0.1.1,

     Framed-Netmask=255.255.255.0,

     Ascend-Metric=2,

     Framed-Routing=None,

     Ascend-Idle-Limit=30
